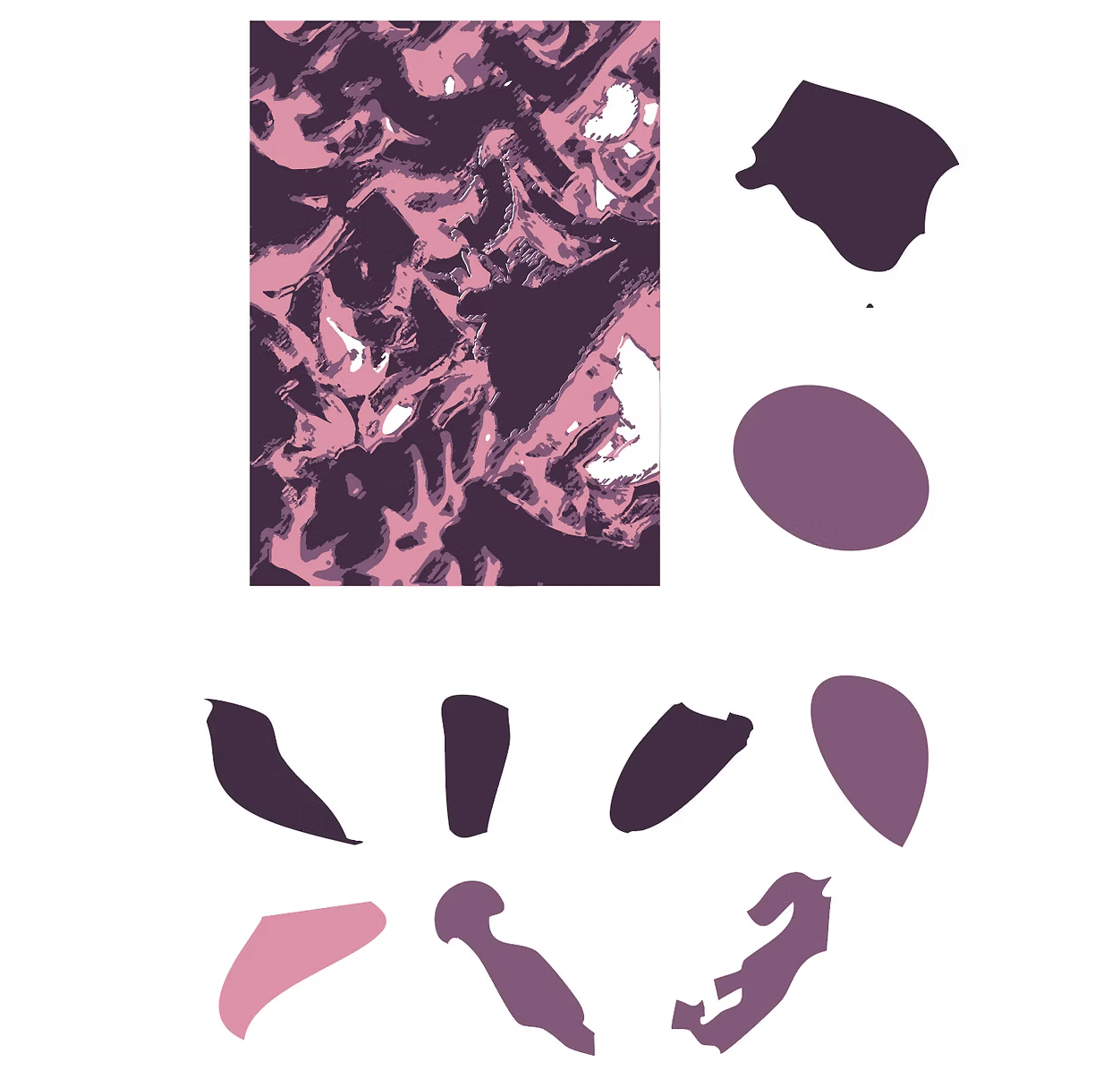

From the images, I then dissected one in order to find shapes which could be used to create my physical object
These were the shapes which I picked out, I tried to pick a variety of simple and more challenging shapes so I could see how the different pairs would work together.

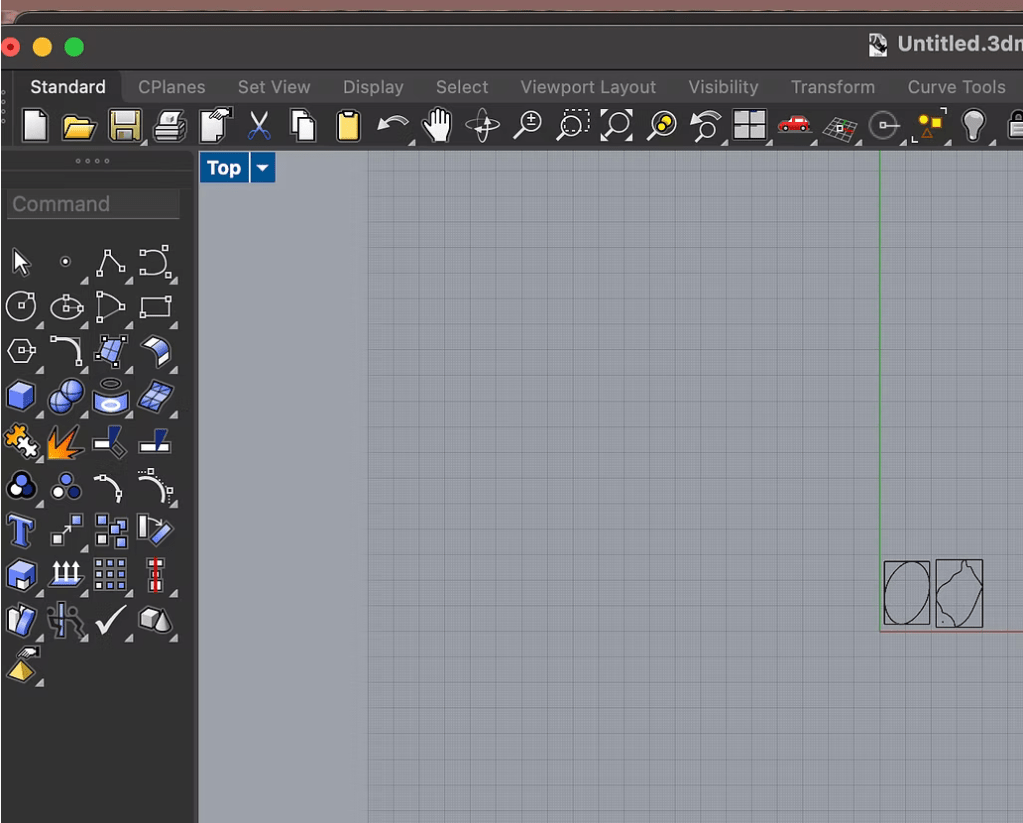

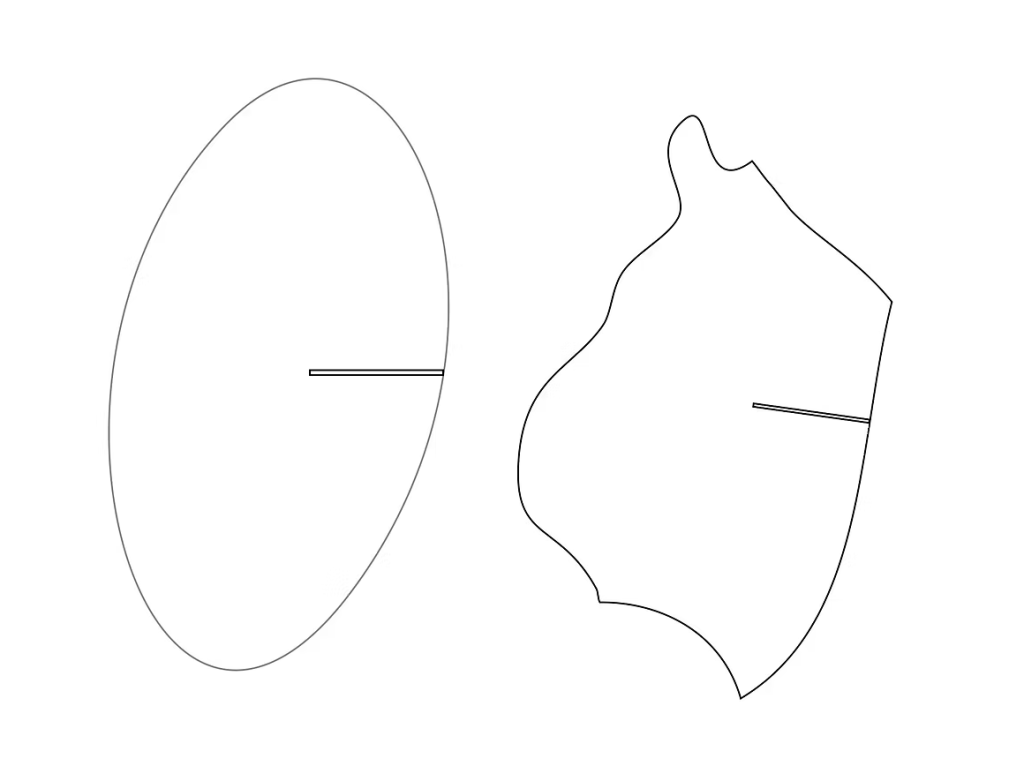

After choosing the two I wanted to pair, I took them from illustrator onto Rhino as 2D shapes then extruded them to make them 3D, and put them together in order to see where they would collide to come together. From that point I was able to create slits in them for the physical model.

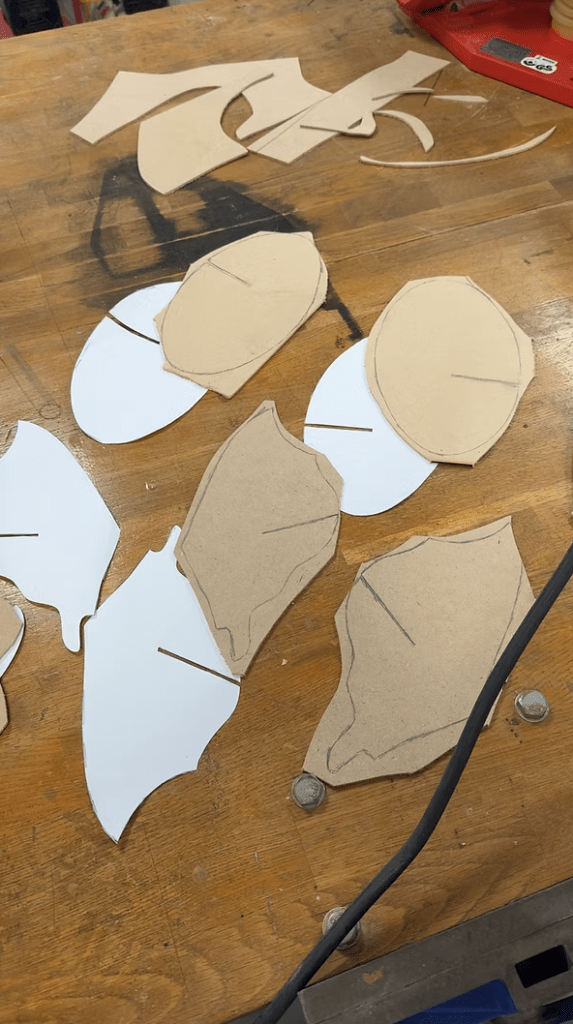

These shoes were then traced on MDF, cut with a saw and sanded.
